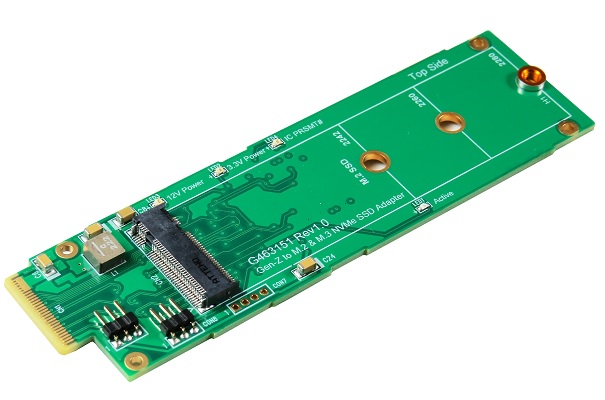

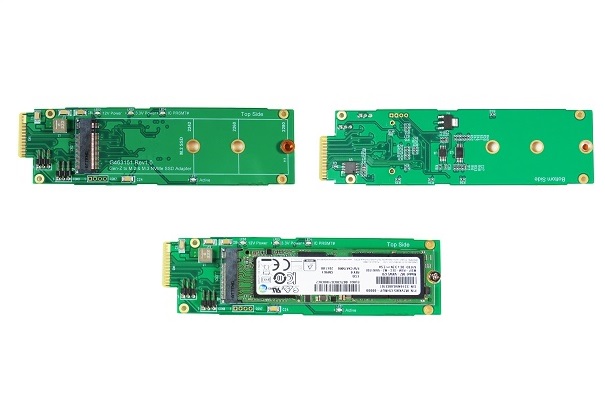

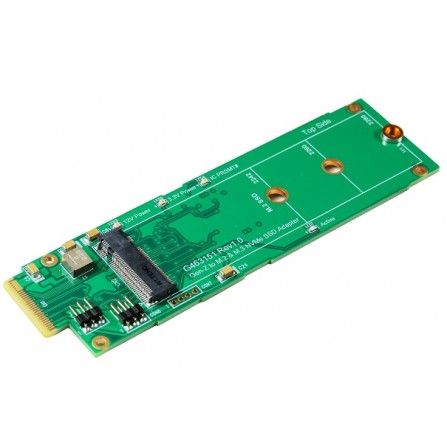

Gen-Z SSD Adaptor

M.2 M.3 SSD to Gen-Z Adapter

  • 4 lanes of PCI-e designated
  • 4 Layer PCB designed
  • Build in M.2 M key connector
  • Connected PCIe 4 Lane signals, from M.2 / M key connector to Gen-Z golden finger
  • PWM synchronous buck converter power fro M.2 SSD
  • 4A maximum output current
  • short circuit protection
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode) / 2KV

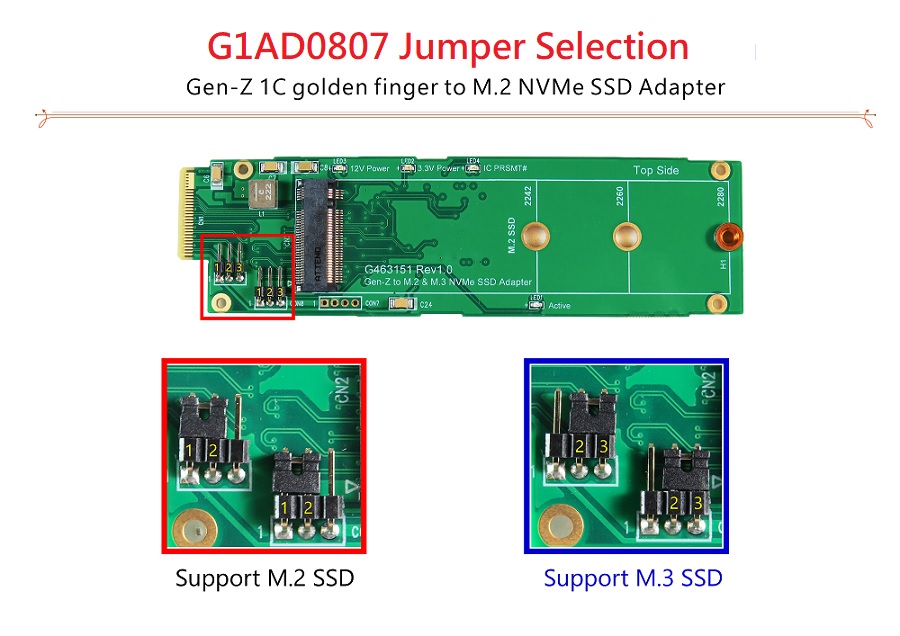

  • Supports M.2 / 1.8V & M.3 / 3.3V SMB_CLK, SMB_DATA Level Shift
  • Supports M.2 / 1.8V & M.3 / 3.3V SMB_CLK, SMB_DATA isolated
  • Built in SMBUS EEPROM 256KB
  • Supports M.3 Dual ports
  • LED3 Green LED on indicates M.3 power ready
  • LED2 Green LED on indicates M.2 power ready
  • LED1 RED LED Blinking indicates M.2 & M.3 SSD active status
  • LED4 Green LED on indicates Gen-Z present
