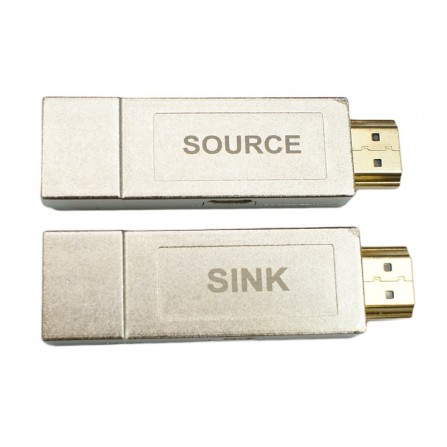

HDMI 1.4 Transceiver

Product No: 6703101

HDMI 1.4 Transceiver is a high performance, four-input, one-output, High-Definition Multimedia Interface (HDMI®) transceiver that integrates HDMI receiver and transmitter functions with digital audio I/Os onto one chip. It supports all HDCP repeater functions through fully tested Analog Devices, Inc., repeater software libraries and drivers

supports all mandatory 3D TV formats in addition to all HDTV formats up to 1080p 36-bit Deep Color. The ADV7622 also features an integrated CEC controller that supports capability discovery and control (CDC).

Description:

>HDMI 1.4a Support
>HDCP Support
>DDC CEC HPD Signal Support
>MiraDeed Transmitter Optical Subassembly Technology
>Supports up to 300m Transmission Distance at up to 10.3Gbps With OM3 Multimode Fiber
>Supports All Modes Up to 4Kx2Kx30 Resolution
>Standard HDMI Connector
>Integrated USB Connector For Power
>Double Power Supply (HDMI 5V&USB)*
>Hot-Pluggable
>EMI/RFI Resistant
>850nm VCSEL and PIN Photodetector
>2-Wire Interface
>Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
>Operating Case Temperature: 0~70°C
* Note: If the HDMI Source and Sink can provide the enough current from HDMI 5V pin, the
USB cable is not needed.
